One of the features merged in the 3.9 development cycle was TCP and UDP support for the SO_REUSEPORT socket option; that support was implemented in a series of patches by Tom Herbert. The new socket option allows multiple sockets on the same host to bind to the same port, and is intended to improve the performance of multithreaded network server applications running on top of multicore systems.
The basic concept of SO_REUSEPORT is simple enough. Multiple servers (processes or threads) can bind to the same port if they each set the option as follows:

1
2
3
4
5
6

    int sfd = socket(domain, socktype, 0);

    int optval = 1;
    setsockopt(sfd, SOL_SOCKET, SO_REUSEPORT, &optval, sizeof(optval));

    bind(sfd, (struct sockaddr *) &addr, addrlen);

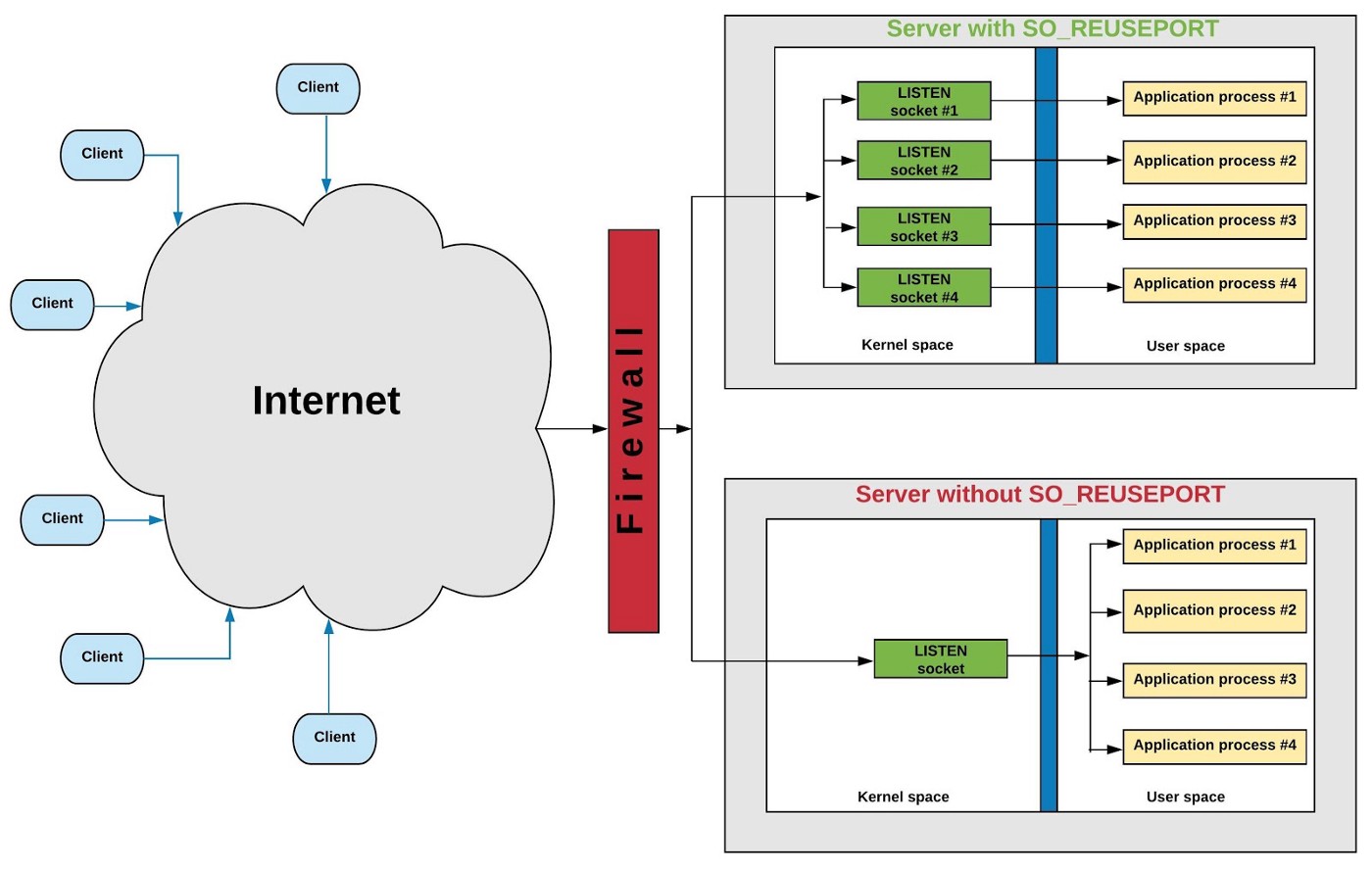

With TCP sockets, it allows multiple listening sockets—normally each in a different thread—to be bound to the same port. Each thread can then accept incoming connections on the port by calling accept(). This presents an alternative to the traditional approaches used by multithreaded servers that accept incoming connections on a single socket.

distribution

There are two other noteworthy points about Tom’s patches. The first of these is a useful aspect of the implementation. Incoming connections and datagrams are distributed to the server sockets using a hash based on the 4-tuple of the connection—that is, the peer IP address and port plus the local IP address and port. This means, for example, that if a client uses the same socket to send a series of datagrams to the server port, then those datagrams will all be directed to the same receiving server (as long as it continues to exist). This eases the task of conducting stateful conversations between the client and server.

Traditional approaches

• The first of the traditional approaches:

is to have a single listener thread that accepts all incoming connections and then passes these off to other threads for processing. The problem with this approach is that the listening thread can become a bottleneck in extreme cases. In early discussions on SO_REUSEPORT, Tom noted that he was dealing with applications that accepted 40,000 connections per second.

• The second of the traditional approaches:

used by multithreaded servers operating on a single port is to have all of the threads (or processes) perform an accept() call on a single listening socket in a simple event loop of the form:

1
2
3
4

    while (1) {
        new_fd = accept(...);
        process_connection(new_fd);
    }

The problem with this technique, as Tom pointed out, is that when multiple threads are waiting in the accept() call, wake-ups are not fair, so that, under high load, incoming connections may be distributed across threads in a very unbalanced fashion. By contrast, the SO_REUSEPORT implementation distributes connections evenly across all of the threads (or processes) that are blocked in accept() on the same port.

Diff with SO_REUSEADDR

Tom noted that the traditional SO_REUSEADDR socket option already allows multiple UDP sockets to be bound to, and accept datagrams on, the same UDP port. However, by contrast with SO_REUSEPORT, SO_REUSEADDR does not prevent port hijacking and does not distribute datagrams evenly across the receiving threads.
